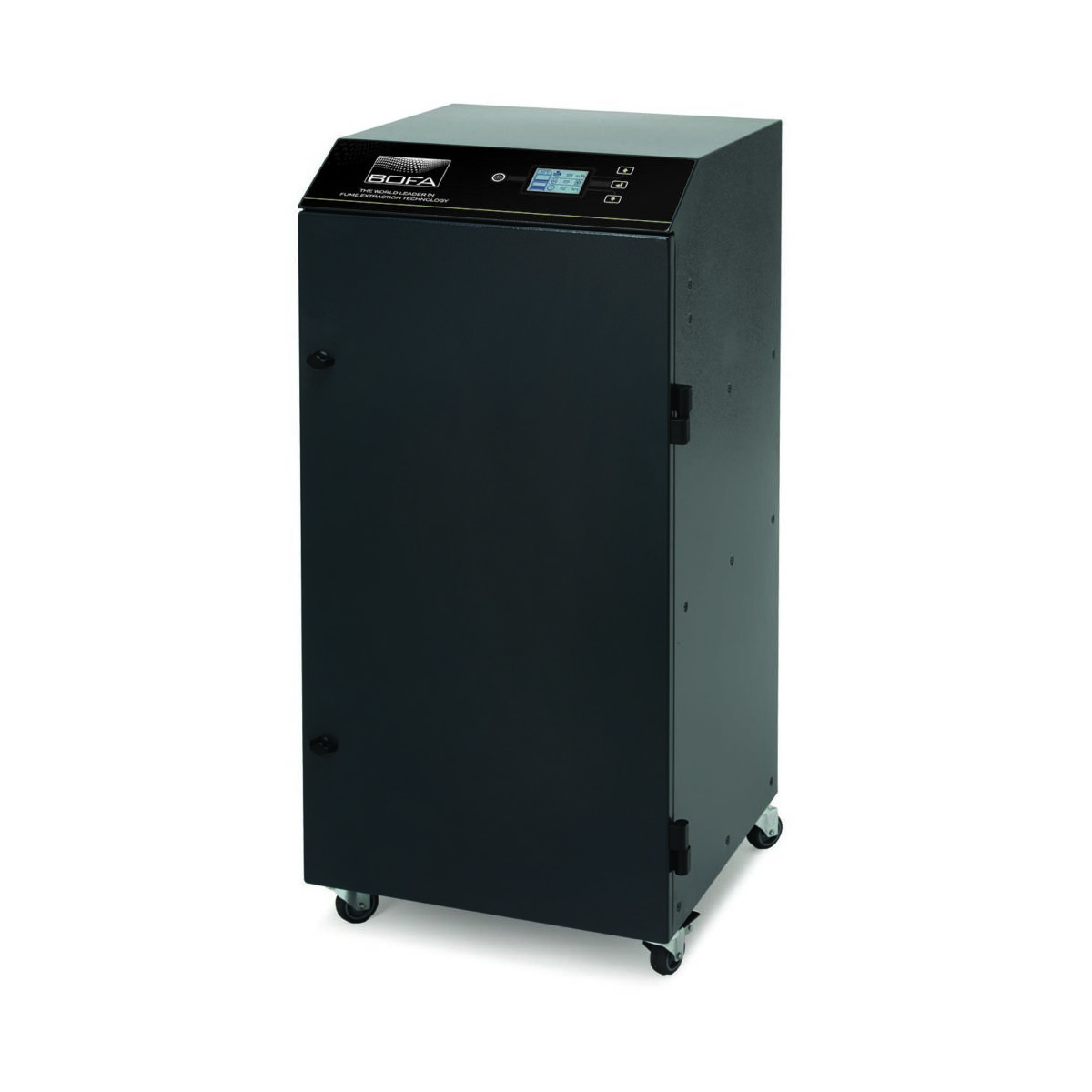

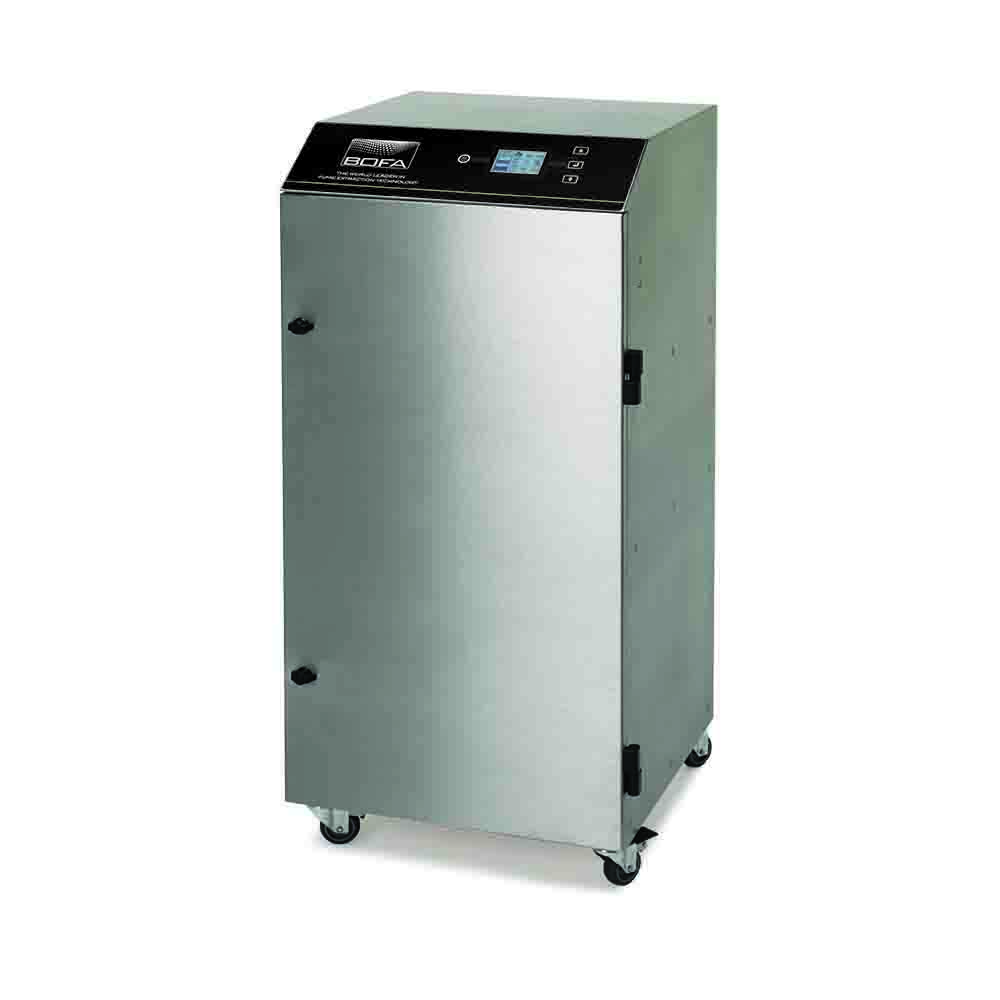

BOFA AD Oracle iQ Filter Unit

From £2,079.00 (excl VAT)

The premier choice and best in class solution with unique features in a compact unit. The perfect sized filter unit for small to medium sized laser cutters and engravers.

Optional Features


(prices excl VAT)

Replacement Filters


(prices excl VAT)

The ‘Best in Class’ high performance AD Oracle has now been further enhanced with the introduction of BOFA’s new iQ Operating System, combining a range of unique features into one compact unit.

The iQ Operating System performs at two distinct levels. Operators benefit from ease of operation and clarity of real time information, the system also provides a cache of analytical data, enabling users to download performance and operating parameters for evaluation purposes.

The iQ system takes performance and safety parameters to a new level and ensures that maintenance downtime and ownership costs are kept to a minimum.

More information about the Intelligent (iQ) Operating System.

The AD Oracle iQ makes the ideal pairing with the Cad Cam Technology FB500 series laser cutter sold by AMS. When paired with the FB500 the filter unit can be interfaced with the laser cutter so that the filter unit will only operate when needed saving money, energy and hassle.

Weight 65 kg
Dimensions

H975 x W455 x D505mm

Cabinet Construction

Brushed Stainless Steel, Powder Coated Steel Construction

Airflow / Pressure

380m³/hr / 96mbar (223cfm / 96mbar)

Pre-Filter efficiency

95% @ 0.9 microns

HEPA/Gas filter efficiency

99.997% @ 0.3 microns

Electrical Data

90v – 257v 1ph 50/60Hz Full load current: 12.5 amps / 1.1kw

Noise Level

< 60dBA (at typical operating speed)

Weight

65kg (143lbs)

Inlet size

75mm

Approvals

CE Mark, cUL, UL

Replacement Filters

Combined HEPA/Gas filter (A1030155), DeepPleat DUO Pre filter (A1030156)

We deliver to all parts of the UK and the Republic of Ireland. All BOFA filter units are built to order to the customers specifications.  The average lead time on any filter extraction unit is approximately 4 – 5 weeks.

Included with your BOFA Filter units is a 2 year on-site warranty. Further information on the warranty provided on BOFA products can be found ion the terms and condition.

Education Leasing Example 1

Invoice value – £1,000.00

Length of agreement – 3 Years

Quarterly payment – £102.45

Annual payment – £377.83

Your school could have their equipment installed from just £7.88 per week!

Education Leasing Example 2

Invoice value – £20,000.00

Length of agreement – 5 Years

Quarterly payment – £1,415.00

Annual payment – £5,110.20

Your school could have their equipment installed from just £108.85 per week!
