£1,599.00 (excl VAT)

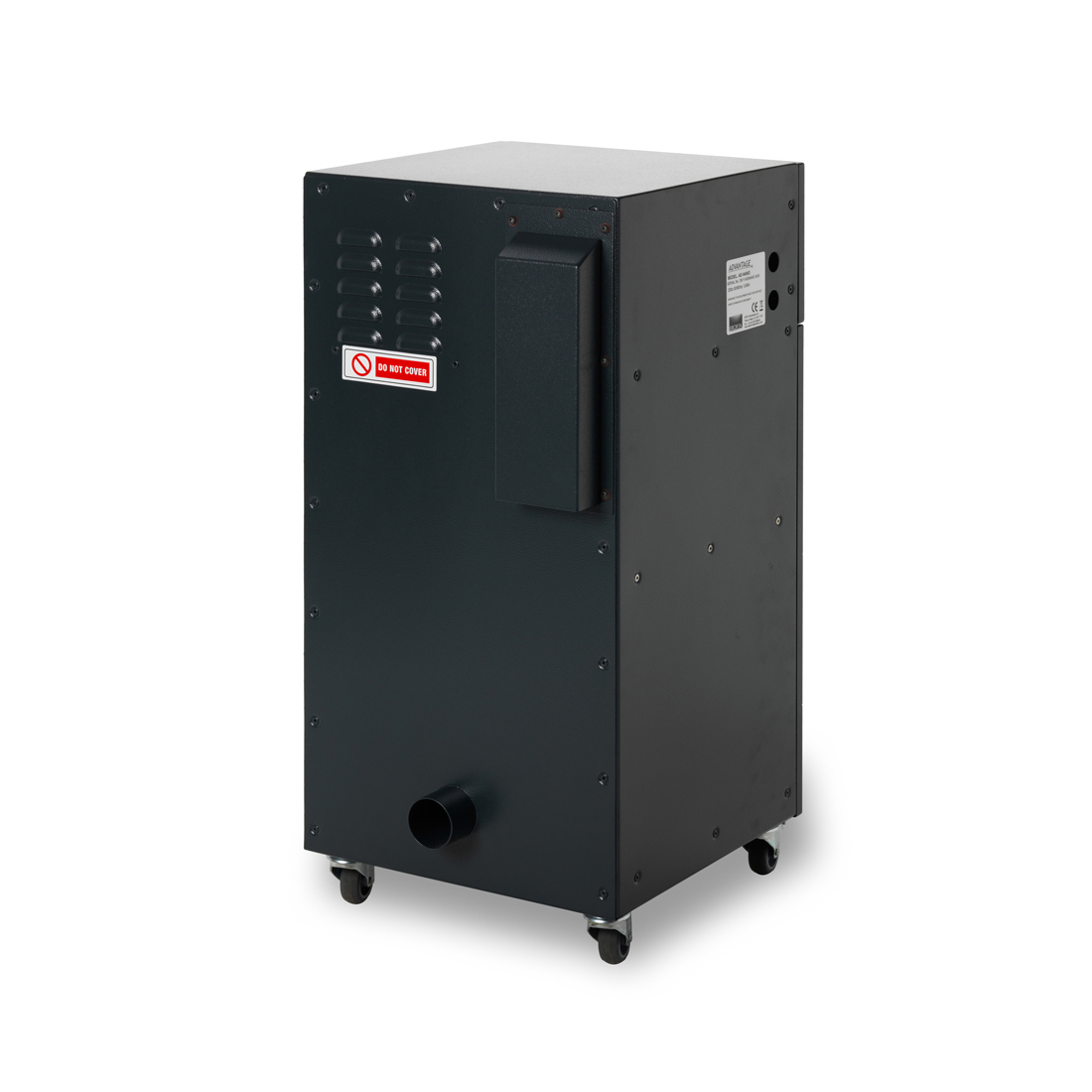

The AD Nano+ fume extraction and filtration system has been designed as a cost effective solution for light duty applications and is the ideal choice for installations where floor space is limited.
Please note that every new filter unit is supplied with filters included. Additional replacement filters can be purchased using the check boxes below.
Suitable for light laser coding applications, the AD Nano+ incorporates many of the features found on our larger systems.
The use of an Auto-Voltage Sensing Turbine means that the unit can be used anywhere in the world.
Reverse Flow, Patented DeepPleat DUO and ACF filter technologies ensure optimised performance and filter life.
| Weight | 42 kg |
|---|---|
| Dimensions | H790 x W360 x D420mm |
| Cabinet Construction | Brushed Stainless Steel, Powder Coated Steel Construction |
| Airflow / Pressure | 300m³/hr / 96mbar (176cfm / 96mbar) |
| Pre-Filter efficiency | 92% @ 0.8 microns |
| HEPA/Gas filter efficiency | 99.997% @ 0.3 microns |
| Electrical Data | 90v – 257v 1ph 50/60Hz Full load current: 12.5 amps / 1.1kw |
| Noise Level | < 60dBA (at typical operating speed) |
| Weight | 42kg (207lbs) |
| Inlet size | 50mm |
| Approvals | CE Mark |
| Replacement Filters | Combined HEPA/Gas filter (A1030191), Pre filter (A1030190) |
We deliver to all parts of the UK and the Republic of Ireland. All BOFA filter units are built to order to the customers specifications. The average lead time on any filter extraction unit is approximately 4 – 5 weeks.
Included with your BOFA Filter units is a 2 year on-site warranty. Further information on the warranty provided on BOFA products can be found ion the terms and condition.
| Title | Action | |
|---|---|---|
| AD Nano+ Datasheet Download | Download |
